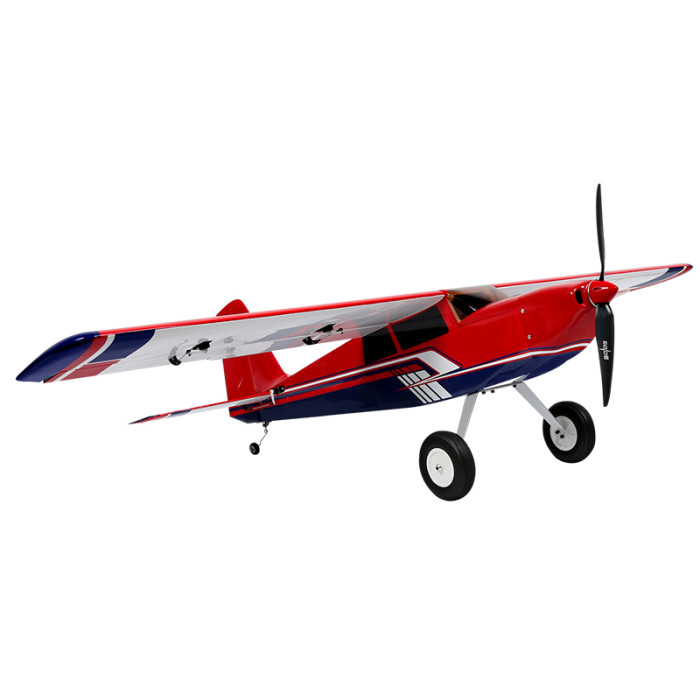

OMPHOBBY BIGHORN 49” Balsa Airplane

OMPHOBBY BIGHORN 49” Balsa Airplane

US$ 220.00
Color
Flap
Pro Flap Non Flap
Version
ARF PNP

BNF: without Transmitter

RTF-Mode1: come with Transmitter (right hand throttle)

RTF-Mode2come with Transmitter (left hand throttle)

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
OMPHOBBY BIGHORN 49” Balsa Airplane
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Bighorn 49'' Pro wing has a large flaperon design, which gives the aircraft an incredible short- distance take -off and landing capability. Coupled with a large rudder and lift, the aircraft has 3D flight skills.and has exaggerated big feet, so that the aircraft can adapt to various harsh terrain take-off and landing. Strong Power Long Endurance Acrobatic Flight.

    Features

    High quality: Equipment SUNNYSKY motor/ESC OMPHOBBY Servo.

    PNP: Assemble in ten minutes.

    Super rigid: Foam plane can not be compared.

    High playability: Ultra short take-off and landing, flaperon mixing, air brake, super slow flight.

    3D Flight: The perfect fusion of upper single-wing practice aircraft and sports aircraft brings ultimate performance.

    All-terrain take-off and landing:strong landing gear, CNC axles and large wheels to overcome all harsh terrain.


    Parameter Specification

    Wing Span: 1250mm(49in)

    Full Length: 1040mm(41in)

    Flight Weight: 1.55kg

    Wing Area: 34.67d

    Wing Load: 44.7g/d

    Wing Angle of Incidence: 1.5°

    Motor Thrust Angles: Down 2° & Right 4°

    Pack Dimension: 101*29*23 (L*H*W)cm

    Gross Weight: 6.65KG


    The Center of Gravity (CG)

    Approx. 58-66mm (measured from wing leading edge at root)


    Power System

    Motor: Sunnysky 2820

    ESC: 40A

    Propeller: Eolo 13x7E/12x6.5E

    Lipo battery:3S/4S 2200-2600mah


    Servo

    OMPHOBBY SG5 17g *6  (Aileron*2,Flap *2, Elevator*1, Rudder*1)

    Cord/lead: 300mm*2,600mm*4

    Servo Arm: 17g, 0.9"plastic servo arm


    Recommended Settings of Dual Rates and Exponential of Control Surfaces

    Aileron:  Low rate 60 deg.  40% expo

     High rate 100 deg.  40% expo

    Elevator:  Low rate 50 deg.  30% expo

                      High rate 100 deg.  30%expo

    Rudder:  Low rate 60 deg.  30% expo

      High rate 100 deg.  30% expo

    Flap:  Low rate 80 deg.

                 High rate 100 deg.






Customer Reviews

5.0

2022-08-09

R****.
I couldn’t believe the fit and finish. Great plane ,lots of fun.

2021-11-02

J****.
It is difficult to imagine this plane with more power or control throws!
What a blast!
The first takeoff might be interesting, but once you get over laughing and enjoying the sensitivity and settle down, this is a superb plane to play with.

2021-10-21

La****S.
I love my Big Horn.Do you have any more planes build like the Big Horn that run on 3s?

2021-09-30

C****c
OMPHOBBY, fast shipping, well packaged and excellent customer service. the positive: is balsa and receiver ready. flies fantastic, no bad habits and looks super good in the air (green color). lots of complement on the field ... the negative: cheap servos, don't centralize and have no torque. Eventually I'll change all of them
Summary: good plane.

2021-09-23

D****.
I had considerable trouble being able to get the Big Horn, but once they were in stock my order was filled, mailed, and received in good condition.
I have two sons that have the same plane and we all agree its a great buy.
The workmanship is excellent and it doesn't take long to set up. The covering
is very nice. I was also impressed with your tail wheel set up. It will be interesting to see how well it holds up..Your service to the customer was outstanding and I thank you for that. Keep up the good work and thanks for a great airplane. I have not flown my plane yet, but I did fly my grandson's and it performed very well.
